迁移sample ImageTracking_Targets 到 4000.0¶

替换插件包¶

关闭Unity
删除Unity打包生成的平台编译目录（Android的Gradle工程目录，以及iOS的XCode目录）或整个Library文件夹。
重新打开Unity工程，将老版本的EasyAR Sense Unity Plugin从工程中移除

导入4000.0版本的EasyAR Sense Unity Plugin

修改不兼容代码：最快可运行¶

重新导入sample使用的StreamingAssets

private static readonly string[] streamingAssetsFiles = new string[] {
    "EasyARSamples/ImageTargets/idback.etd",
    "EasyARSamples/ImageTargets/namecard.jpg",
};

[UnityEditor.InitializeOnLoadMethod]
static void ImportSampleStreamingAssets()
{
    var pacakge = $"Packages/{UnityPackage.Name}/Samples~/StreamingAssets/ImageTargets/ImageTargets.unitypackage";

    if (streamingAssetsFiles.Where(f => !System.IO.File.Exists(System.IO.Path.Combine(Application.streamingAssetsPath, f))).Any() && System.IO.File.Exists(System.IO.Path.GetFullPath(pacakge)))
    {
        UnityEditor.AssetDatabase.ImportPackage(pacakge, false);
    }
}

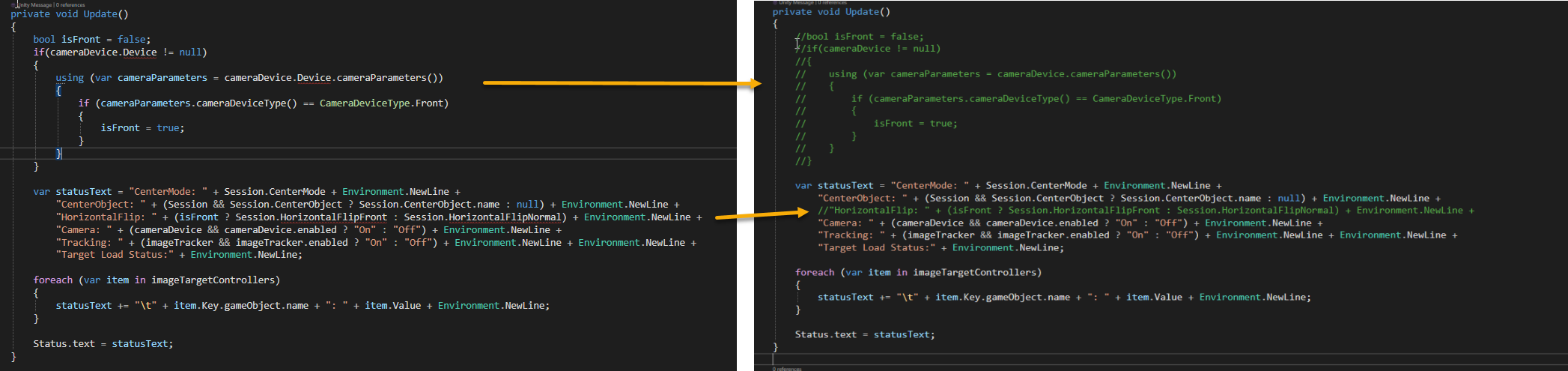

在Update中移除前置相机自动翻转画面的逻辑，移除SwitchHFlipMode()函数

private void Update()
{
    //bool isFront = false;
    //if(cameraDevice != null)
    //{
    //    using (var cameraParameters = cameraDevice.cameraParameters())
    //    {
    //        if (cameraParameters.cameraDeviceType() == CameraDeviceType.Front)
    //        {
    //            isFront = true;
    //        }
    //    }
    //}

    var statusText = "CenterMode: " + Session.CenterMode + Environment.NewLine +
        "CenterObject: " + (Session && Session.CenterObject ? Session.CenterObject.name : null) + Environment.NewLine +
        //"HorizontalFlip: " + (isFront ? Session.HorizontalFlipFront : Session.HorizontalFlipNormal) + Environment.NewLine +
        "Camera: " + (cameraDevice && cameraDevice.enabled ? "On" : "Off") + Environment.NewLine +
        "Tracking: " + (imageTracker && imageTracker.enabled ? "On" : "Off") + Environment.NewLine + Environment.NewLine +
        "Target Load Status:" + Environment.NewLine;

    foreach (var item in imageTargetControllers)
    {
        statusText += "\t" + item.Key.gameObject.name + ": " + item.Value + Environment.NewLine;
    }

    Status.text = statusText;
}

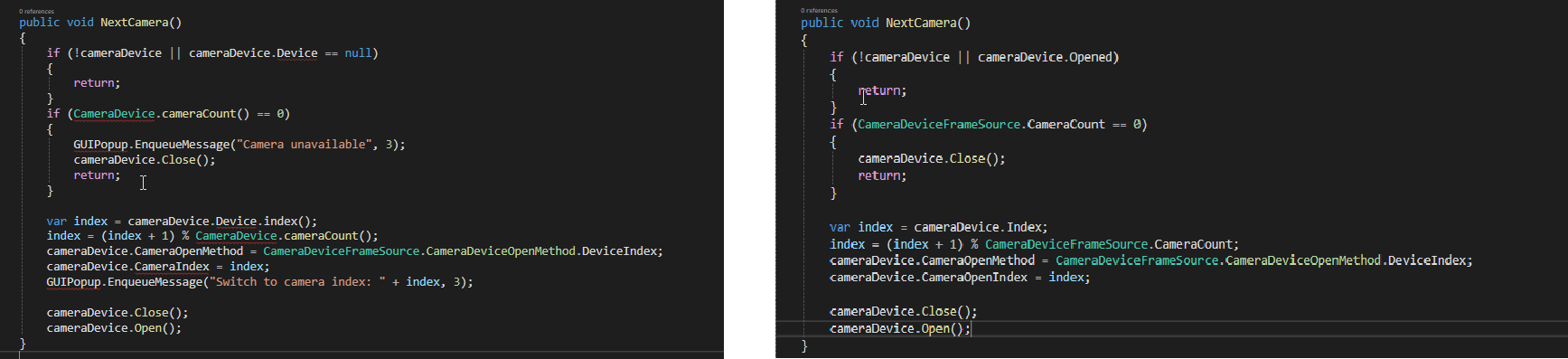

使用新版本API，更新NextCamera()函数

public void NextCamera()
{
    if (!cameraDevice || cameraDevice.Opened)
    {
        return;
    }
    if (CameraDeviceFrameSource.CameraCount == 0)
    {
        cameraDevice.Close();
        return;
    }

    var index = cameraDevice.Index;
    index = (index + 1) % CameraDeviceFrameSource.CameraCount;
    cameraDevice.CameraOpenMethod = CameraDeviceFrameSource.CameraDeviceOpenMethod.DeviceIndex;
    cameraDevice.CameraOpenIndex = index;

    cameraDevice.Close();
    cameraDevice.Open();
}

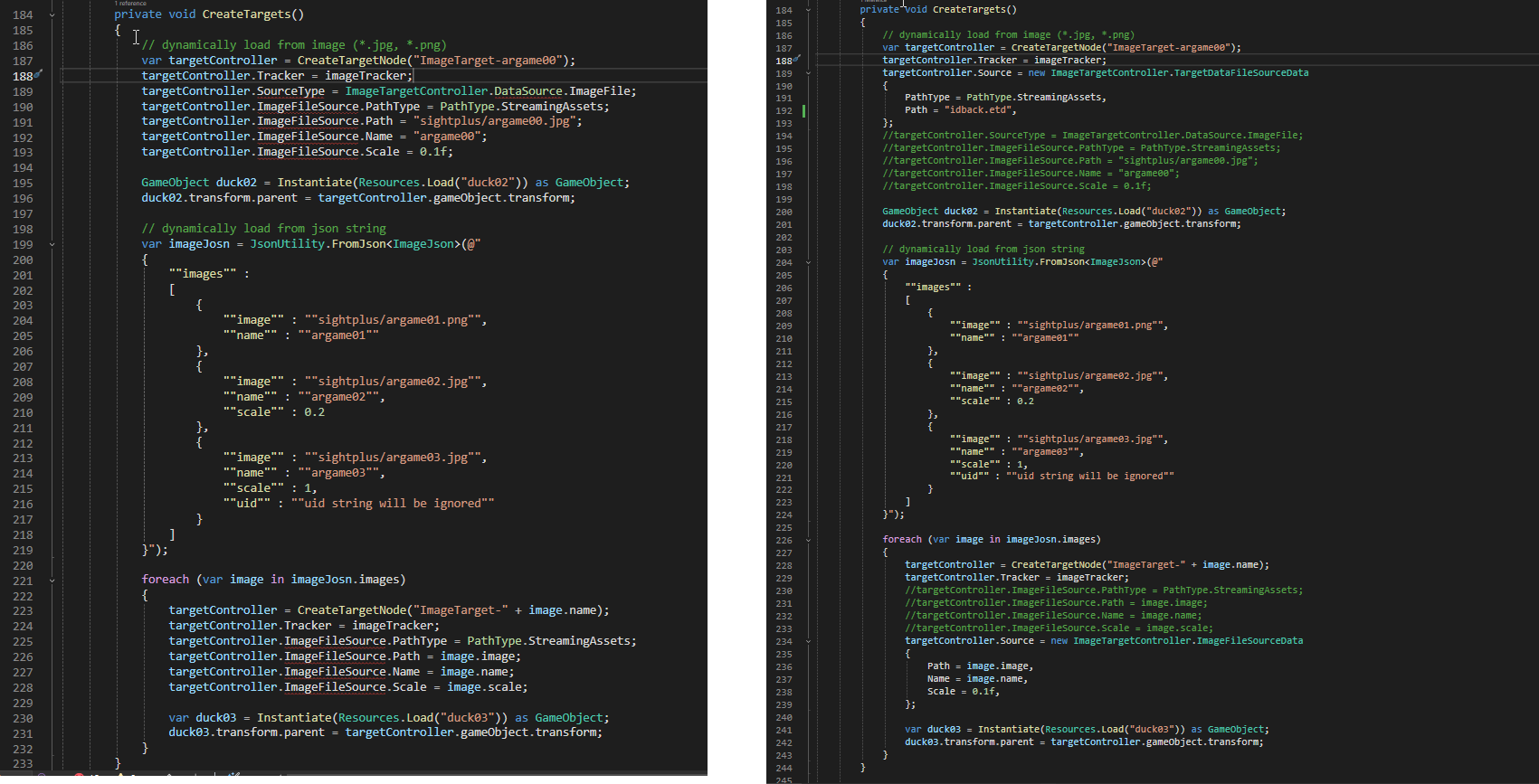

使用新版本API，更新CreateTargets()函数

private void CreateTargets()
{
    // dynamically load from image (*.jpg, *.png)
    var targetController = CreateTargetNode("ImageTarget-argame00");
    targetController.Tracker = imageTracker;
    targetController.Source = new ImageTargetController.TargetDataFileSourceData
    {
        PathType = PathType.StreamingAssets,
        Path = "idback.etd",
    };
    //targetController.SourceType = ImageTargetController.DataSource.ImageFile;
    //targetController.ImageFileSource.PathType = PathType.StreamingAssets;
    //targetController.ImageFileSource.Path = "sightplus/argame00.jpg";
    //targetController.ImageFileSource.Name = "argame00";
    //targetController.ImageFileSource.Scale = 0.1f;

    GameObject duck02 = Instantiate(Resources.Load("duck02")) as GameObject;
    duck02.transform.parent = targetController.gameObject.transform;

    // dynamically load from json string ...

    foreach (var image in imageJson.images)
    {
        targetController = CreateTargetNode("ImageTarget-" + image.name);
        targetController.Tracker = imageTracker;
        //targetController.ImageFileSource.PathType = PathType.StreamingAssets;
        //targetController.ImageFileSource.Path = image.image;
        //targetController.ImageFileSource.Name = image.name;
        //targetController.ImageFileSource.Scale = image.scale;
        targetController.Source = new ImageTargetController.ImageFileSourceData
        {
            Path = image.image,
            Name = image.name,
            Scale = 0.1f,
        };

        var duck03 = Instantiate(Resources.Load("duck03")) as GameObject;
        duck03.transform.parent = targetController.gameObject.transform;
    }
}

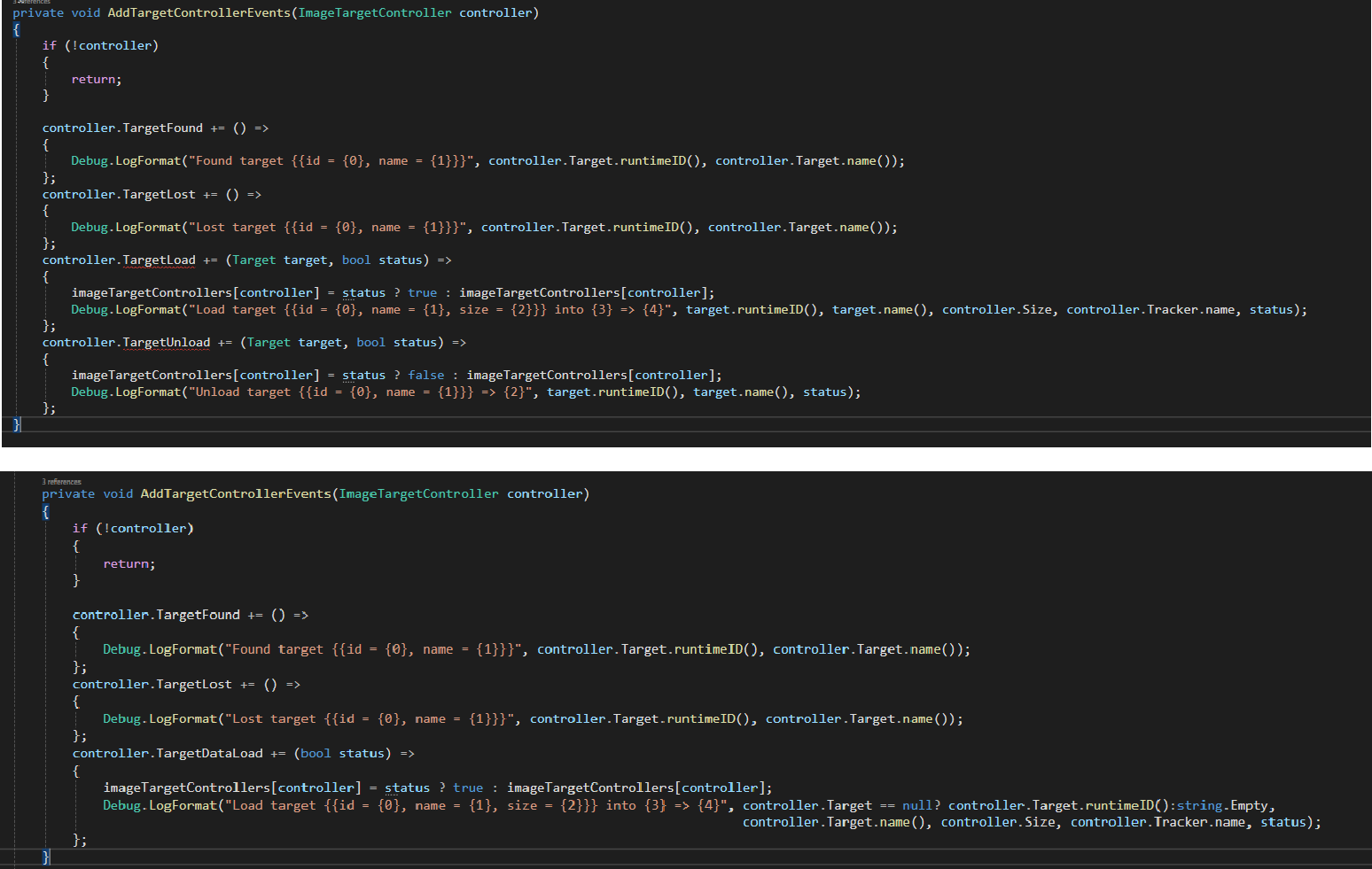

使用新版本API, 更新AddTargetControllerEvents(ImageTargetController controller)函数

private void AddTargetControllerEvents(ImageTargetController controller)
{
    if (!controller)
    {
        return;
    }

    controller.TargetFound += () =>
    {
        Debug.LogFormat("Found target {{id = {0}, name = {1}}}", controller.Target.runtimeID(), controller.Target.name());
    };
    controller.TargetLost += () =>
    {
        Debug.LogFormat("Lost target {{id = {0}, name = {1}}}", controller.Target.runtimeID(), controller.Target.name());
    };
    controller.TargetDataLoad += (bool status) =>
    {
        imageTargetControllers[controller] = status ? true : imageTargetControllers[controller];
        Debug.LogFormat("Load target {{id = {0}, name = {1}, size = {2}}} into {3} => {4}", controller.Target == null? controller.Target.runtimeID():string.Empty,
                                                                                            controller.Target.name(), controller.Size, controller.Tracker.name, status);
    };
}

此时Sample已经基本可以运行

重新构建场景：准备使用新功能¶

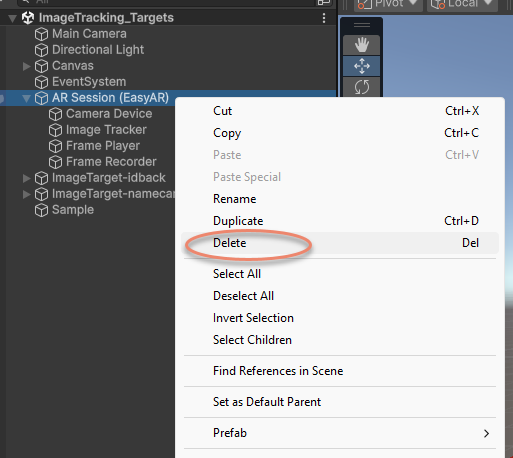

在这之后将场景中的AR Session(EasyAR)重新创建

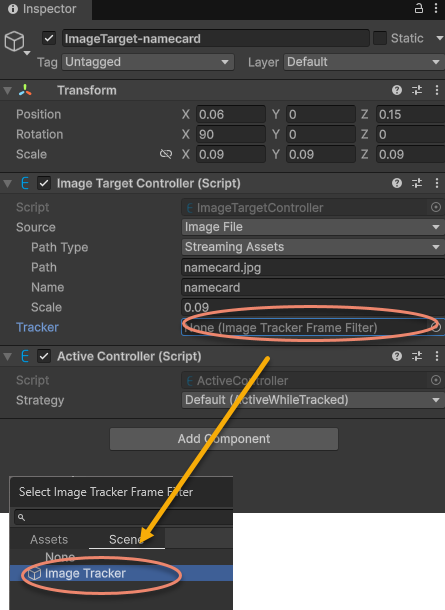

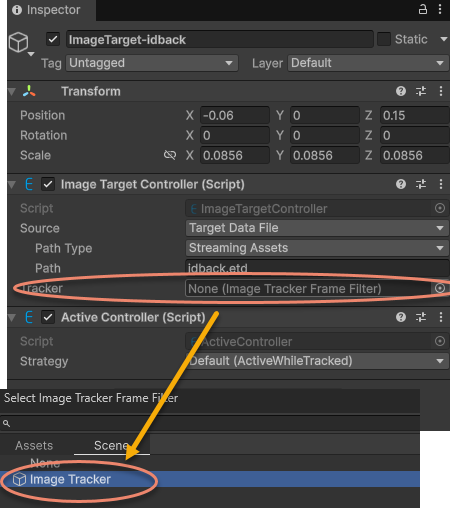

将场景中的 ImageTargetController 重新指定 ImageTrackerFrameFilter

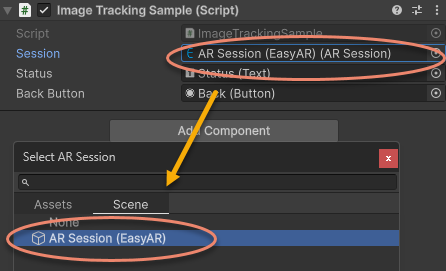

将Sample脚本中的 ARSession 重新指定为新创建的 AR Session(EasyAR)

此时Sample已经可以基于4000.0版本的插件运行

另外还可以调整ImageTarget的相关参数以使用新增的Texture2D加载方式。
